WUTA Leather Hot Foil Stamping Machine – Logo Embossing & Foil Bronzing Press

WUTA Manual Hot Stamping Machine

The Wuta WT1015 manual hot stamping machine is a compact, user-friendly, and reliable benchtop unit. Featuring precise PID temperature control and a manual lever mechanism, it is UL certified for electrical safety. The machine delivers precise foiling and embossing on various materials,  including leather, cardboard, plastics, and cakes, making it an ideal partner for artisans, small studios, and custom businesses.

Product Parameters

●Construction & Materials:
Product Name: WUTA Manual Hot Stamping Machine
Main Structure: Carbon Steel
Surface Finish: Spray Painting (Black)
Heating Plate / Working Table: Aluminum
Handle: No. 45 Steel + Beech Wood

●Key Components:
Heating Element: Φ10mm × 100mm, 250W × 2 pcs
Temperature Controller: PID Intelligent Controller with LED Digital Display
Thermocouple: Type K Thermocouple
Fuse: 2A Glass Fuse Tube

●Technical Parameters
Rated Voltage: USA Version (AC 120V-60Hz);
Europe Version (AC 230V-50Hz);
Japan Version (AC 100V-50/60Hz);
China Version (AC 220V-50Hz). Rated Power: 500W
Temperature Range: 0-400°C (32-752°F)
Temperature Accuracy: ±5℃
Speed: 10-50time/min
Heating Plate Size: 100mm x 150mm (4" x 6")
Work Table Size 130mm x 180mm
Pressing Height: 50mm
Printing center distance: 150mm
Heating Time to 150°C: ~6-8 minutes
Gross weight: ≈ 14 kg
Package Size: 300x230x400mm

 Product Structure

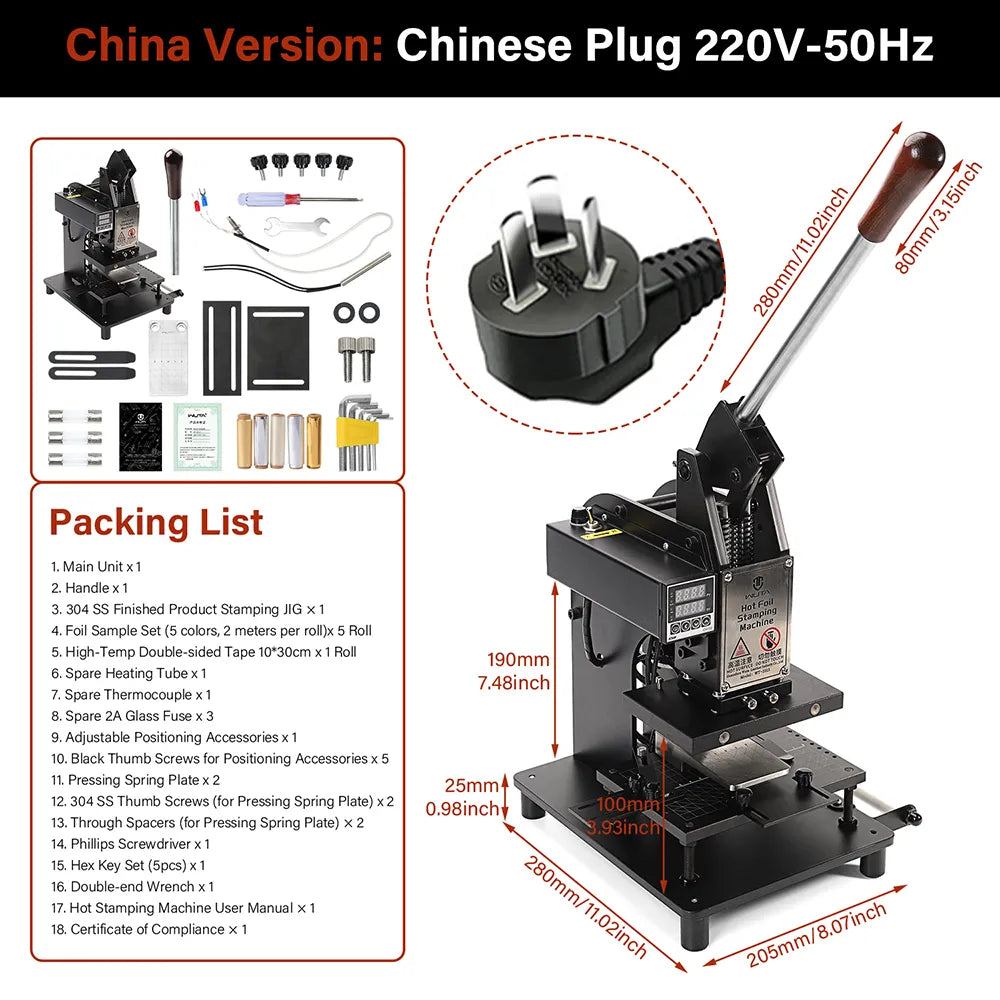

Packing List

1.Main Unit x 1
2. Handle x 1
3. 304 SS Finished Product Stamping JIG × 1
4. Foil Sample Set (5 colors, 2 meters per roll)x 5 Roll
5. High-Temp Double-sided Tape 10*30cm x 1 Roll
6. Spare Heating Tube x 1
7. Spare Thermocouple x 1
8. Spare 2A Glass Fuse x 3
9. Adjustable Positioning Accessories x 1
10. Black Thumb Screws for Positioning Accessories x 5
11. Pressing Spring Plate x 2
12. 304 SS Thumb Screws (for Pressing Spring Plate) x 2
13. Through Spacers (for Pressing Spring Plate) × 2
14. Phillips Screwdriver x 1
15. Hex Key Set (5pcs) x 1
16. Double-end Wrench x 1
17. Hot Stamping Machine User Manual × 1
18. Certificate of Compliance × 1

Electrical safety certified to US UL standards. Ensuring reliable and safe quality.

4 Versions Available.
Available in dedicated voltage versions for major markets including China, Japan, the US, and Europe.

Precision Temperature Control

With a precise PID temperature control system,  Keeps temperature fluctuation within ±5°C, ensuring stable and consistent foil stamping results.

Rapid Heating Performance

Reaches working temperature from room temperature in just 5–8 minutes, boosting work efficiency.

Adjusted positioning accessories

With a customized adjustable positioning accessories system for precise, repeatable positioning. Ensures every piece in batch production has perfectly consistent embossing depth and alignment.

304 SS Finished Product Stamping JIG

With our unique 304 stainless-steel stamping jig, you can stock un-logoed standard finished goods; the customization step is simply insert your finished product into the jig, then press the logo directly, letting your custom orders ship fast. (Applies only to certain finished sizes.)

Professional-Grade Foiling Results

Ensures complete transfer, vibrant color saturation, and sharp, detailed pattern definition.

 Power On and Temperature Setting

● Connect the power, turn on the power switch. The temperature controller displays the current temperature.
●Press the key 🔁 to enter the temperature setting mode; the screen digits will blink.
● Press the key « to move the cursor and select the digit you wish to change.
● Press the key ︽  or ︾ adjust the number to the temperature value you need.
● After completing the settings, press the key 🔁again to confirm. The screen stops flashing, and the device begins heating to the set temperature.

Embossing Procedure:

① Attach the Handle
② Install Positioning Accessories on the Work Table
③ Secure the workpiece on the table using the positioning accessories.
④ Secure the Mold
Set the machine temperature. After the heating plate preheats to around 75°C, lock the embossing position, align the mold, and attach it to the heating plate using high-temperature double-sided tape.
⑤ Embossing
Once secured, adjust the temperature to around 120-140°C and begin test embossing. To change the mold, remove it while hot by gently scraping from the back with a utility knife.
⑥  Finished effect.

Foiling Procedure:

(Steps ①②③④ are the same as above.)
⑤ Install Transfer paper support
⑥ Adjust Temperature & Pre-Press
Set temperature to 80-100°C. Cover the area to be foiled with a transparent carrier film. Press the handle down gently for about 1 second to create a recess of approximately 0.5mm depth.
⑦  Foiling & reinforcement
Place the foil over the recessed area with the colored side facing up. Press the handle down gently for 2-3 seconds, then lift. Carefully peel off the foil backing. To reinforce the adhesion, cover with the transparent carrier film and press once more.
⑧ Finished effect.
