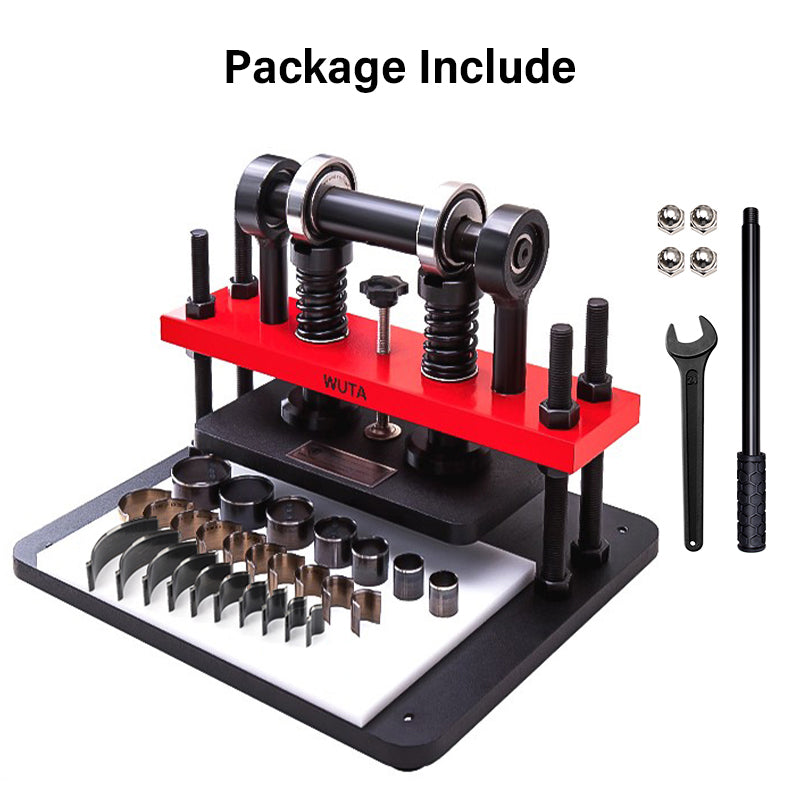

Pro Leather Cutting Machine  (Size L) | WUTA

Specifications

---Material: #45 carbon steel
---Pressure: 1 ton.-1.5 ton.  (2200 lb-3300 lb)
---Thickness of Platens: 15mm (0.59")
---Best Work: Less than 7 mm (0.28")
---Max. Cutting (THK): 10-15 mm (0.39"-0.59")
---Small Size Upper Platen : 260mm x 120 mm (10.2" x 4.7")
---Large Size Upper Platen : 260mmx160mm (10.23"x6.29").
---Large Size Gross Weight:37 kg (81.8 lb)
---Small Size Gross Weight:28 kg (61.8 lb)

Note: Please contact us first before placing the order.

Because the machine is very heavy, we will pack it with wood box, and the freight cost changes greatly. Customers who are interested in this machine and have questions about the freight, please consult us about the actual freight and total price. We will send it out by the most suitable and affordable transportation method. Please feel free to contact us. Thanks！

Feature

💎Double Guiding Shaft Design: Double Axis Guide shaft chrome-plated quench, high pressure, High hardness, High precision, High Wear-resistant. Besides, double guide wheels and long compression rods can increase the pressure, allowing you easily finish the die-cutting process.

💎Solid Construction: Made of selected high-quality steel, black anodized, the red part with spraying plastics process, stronger Rust & corrosion Resistance. Advanced needle bearing can withstand pressure loads of 1 ton or 1.5 tons. The applicable pressure range is 260mmx120mm/10.2inchx4.7inch.

💎New Upgrade Design: The upgraded die-cutting machine's large bottom plate has a smoother contact surface and a strong load capacity. With smooth screw caps to reduce scratches in use. Comes with a high-density PVC board and a cutting mold, allowing you to save money and save time.

💎Excellent Stability: The guide shaft is integrated with the silicon manganese steel spring wire to provide more stable applications. The upgraded asymmetric bottom plate ensures strong stability.

💎Multi-function Fixed Adjustment Lever: The machine not only cuts leather, but also shapes the leather. The fixed adjusting lever, whose main function is adjust to different heights and fixed positions to prevent the control lever from returning to its original position, so that the machine can press for a long time to shape the leather, to get different shapes of leather.

💎Widely Used: The die-cut embossing machine is suitable for cutting various materials, such as leather, fabric, cloth, stickers, plastic, rubber sheet, film, paper, etc. During operation, pay attention that the knife-edge of the die-cutting should face upward.
